1.Feature:

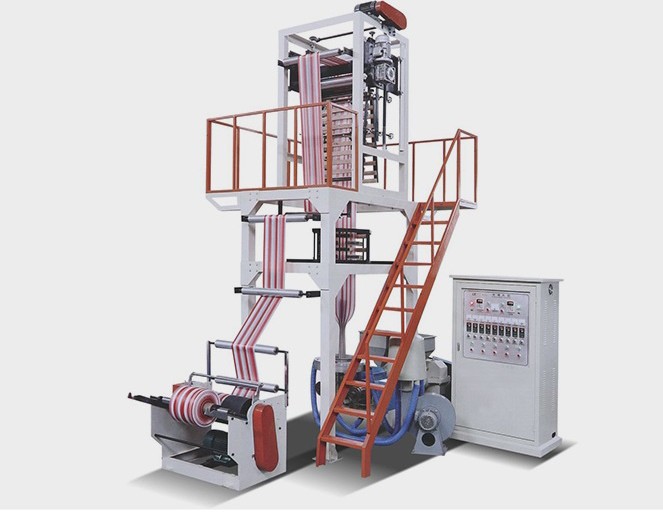

1.1 It is used for blowing various low density polyethylene and high density polyethylene color striped plastic film, etc.
1.2 Which are widely used for packing food, fruit, garment, textile, daily necessities and other civil and industrial products.
1.3 The cylinder and the screw stem of model SJ-45X2 extruder are made of high quality alloy steel with optimum hardness are strong corrosion resistance after precision
finishing and nitrogen treatment.
1.4 auxiliary machine can be freely adjusted with the limits of 600mm according to the technological requirements of different
materials, and has been fitted with a plug in plastic motor to keep proper tension and make rolling even and roll changing easy.
2.Main technical Specification
Model
SJ45×2
SJ50×2
SJ55×2
Screw diameter
φ45mm×2
φ45mm×2
φ45mm×2
Film width (mm)
100-600
200-800
300-1000
Film single layer thickness(mm)
0.01-0.10
0.01-0.10
0.01-0.10
Output capacity(kg/h)
40
55
70
Screw L/D ratio
26:1
26:1
26:1
Main motor(kw)
15
18.5
22
Traction motor(kw)
1.1
1.1
1.5
Heating power(kw)
15
18
25
Dimension
4.8×1.9×4.1m
5.5×2.1×4.5m
6.5×2.3×4.9m
