Feature:
1. Automatic counting and alarming.
2. With accurate photocell eye tracking ,stops automatically in case of wrong color marks.
3.The bag making length is controlled by button,applicable for the various plastic film of low density
polyethylene (LDPE),high density polyethylene(HDPE) thin film to sealing and cutting natural and color bags,etc.
4.Widely used for packing food,cloth,industrial products and electric appliances.
Main Technical Specification:
Model
LQ-600
LQ-800
LQ-1000
LQ-1200
Bag making width
560mm
760mm
960mm
1160mm
Bag making length
200-1200mm
200-1600mm
200-1600mm
200-1600mm
Bag making speed
20-120pcs×2
20-120pcs×2
20-120pcs×2
20-120pcs×2
Work line
2lines
2lines
2lines
2lines
Main motor
1.1kw
1.5kw
2.2kw
2.2kw
Gross weight
800kg
900kg
1200kg
1400kg
Dimension
3.2×1.2×1.7m
3.6×1.5×2m
3.8×1.8×2.2m
3.8×2×2.2m

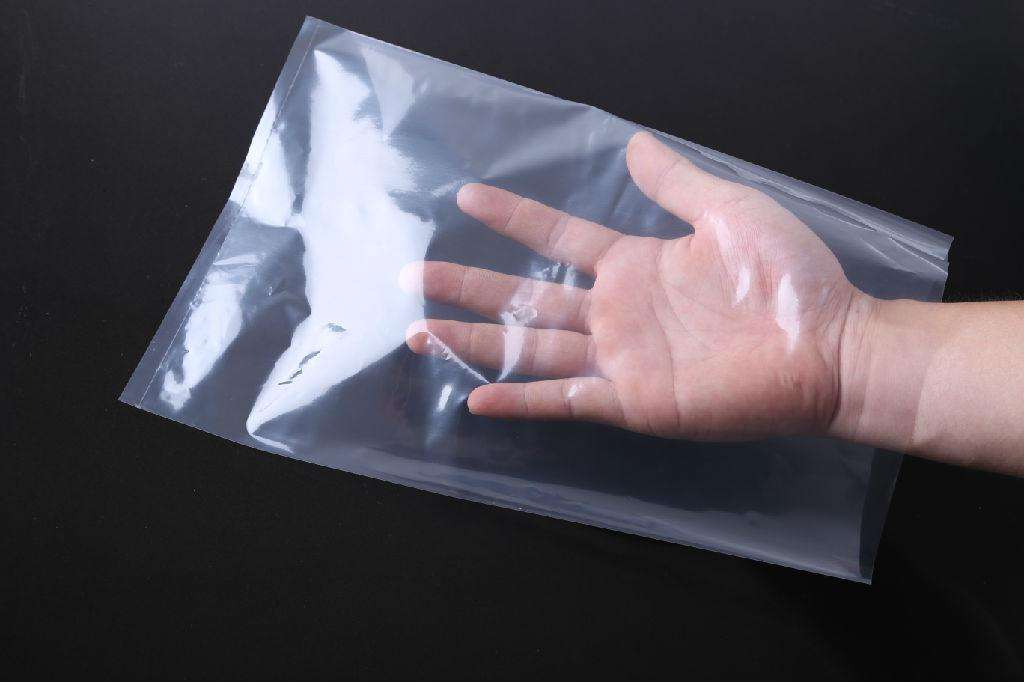

Bag Product:
