Feature:
1) This machine is suitable for sealing and cutting HDPE, LDPE and PP plastic film, it is one of the best
equipment for producing plastic film vest bag and flat bag.
2) This machine equipped with accurate photocell eye tracking ,can automatic control feeding, automatic
constant temperature control device, electric static removing.
3)The bag-making length is controlled by button,easy operation, stable performance and firm bottom sealing.
4)this machine is the most economical and suitable sealing and cutting bag machine, making large,middle,
small size bag with good speed.
Main Technical Specification:
Model
HSXJ-600
HSXJ-800
HSXJ-1000
Max. Bag width
500mm/250mm×4
700mm/350mm×4
900mm/450mm×4
Max. Bag length
200-800mm
200-800mm
200-800mm
Bag making speed
0.006-0.10mm
0.006-0.10mm
0.006-0.10mm
Work line
4lines
4lines
4lines
Error in Length
±1mm
±1mm
±1mm
Bag making Speed
30-100pcs/min ×4
30-100pcs/min ×4
30-100pcs/min ×4
Main Motor power
1.1kw
1.5kw
1.8kw
Heating Power
1.5kw
2kw
2.2kw
Total Power
3.5kw
5kw
6kw
Machine weight
800kg
1000kg
1200kg
Overall Dimensions
3.2×1.2×2m
3.2×1.5×2m
3.2×1.8×2m

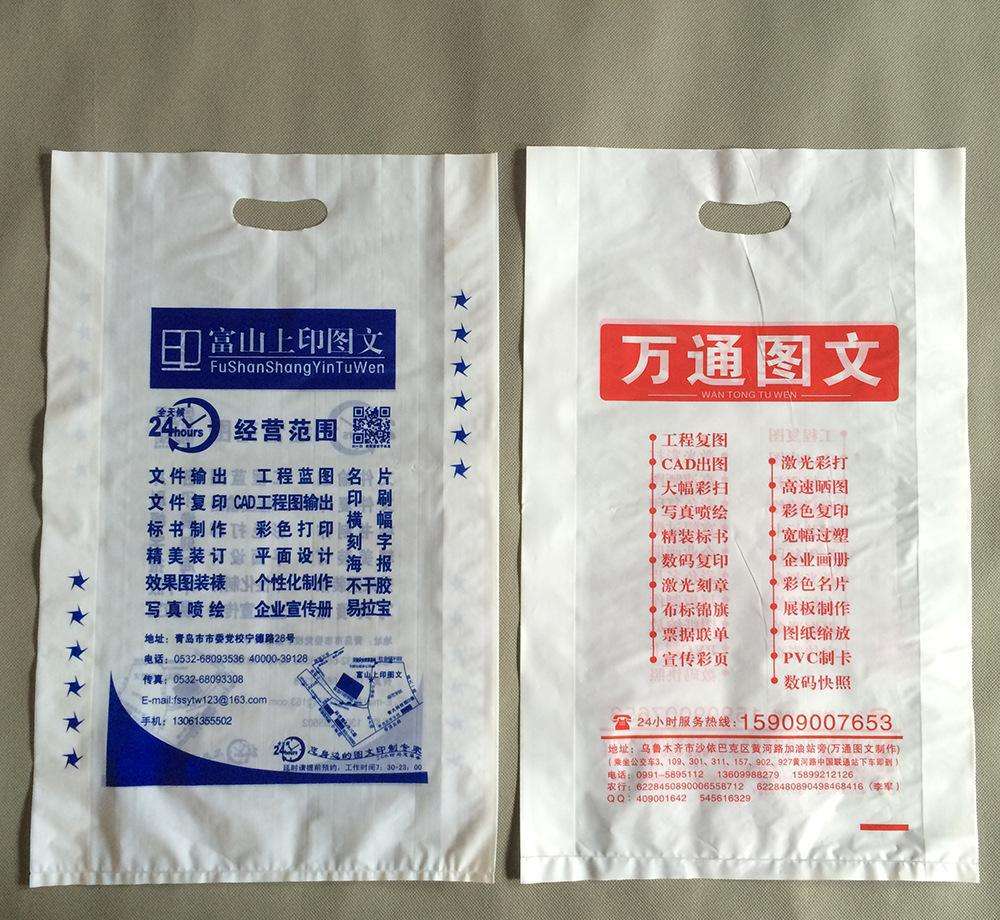

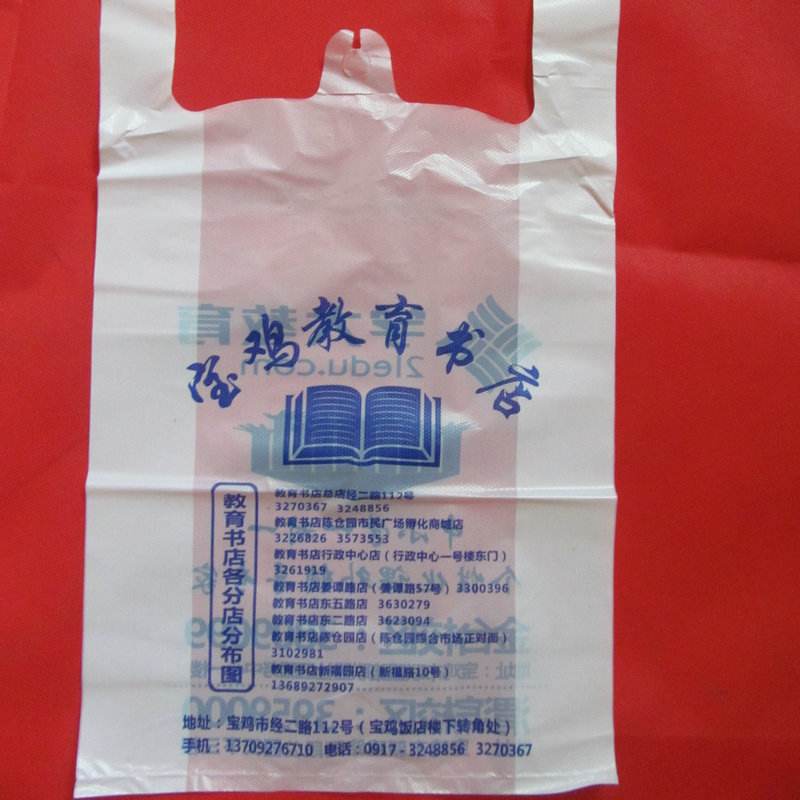

Bag Picture:
