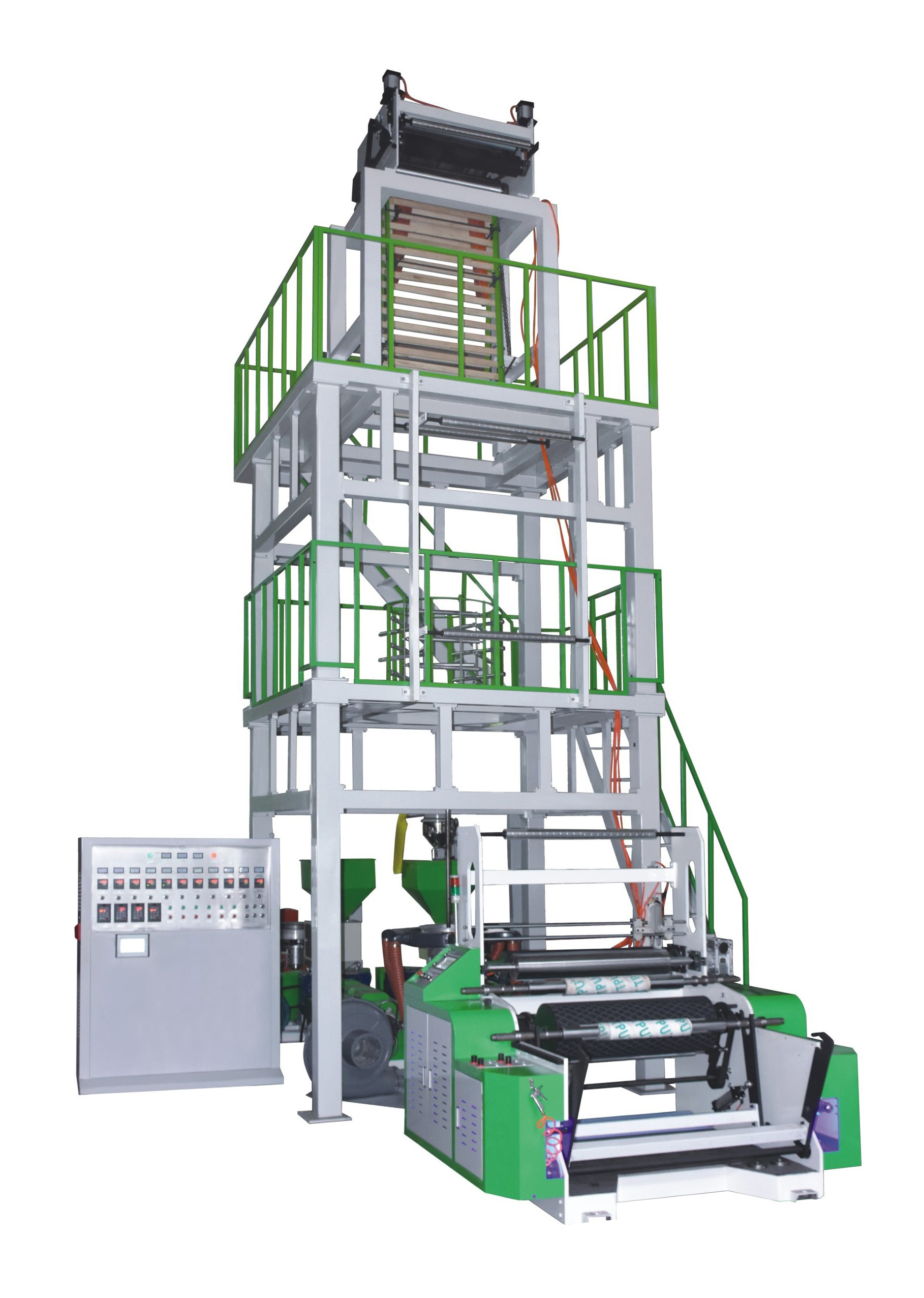

SJ45/50/55/60 Double screw 3 layers ABA type PE film blowing machine - Film Blowing Machine_Bag Making Machine

1.Feature:

1)The double layer co-extrusion laminated film can prolong the length for preservation of liquid package.

2)The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.

3)The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.

4)Double rolling and double cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll changing easy.

5)It special for HDPE t-shirt shopping bag film making. Support mix recyclable material, fill material together for blowing high transparent film.

2. Main Technical Specification

Model	SJ45/50-1000
Suitable material	HDPE，LDPE
Screw diameter	45mm×1set;50mm×1set;
Screw L/D ratio	30:1
Film max. Width	1000mm
Film thickness	0.009-0.15mm
Max. Output capacity	60-80KG/H
Average power consumption	45kw
Gross weight	3000KGS
Dimension	5000×2500×4800mm
Power condition	380V, 50Hz, 3 phase
Extrude Unit
Screw/barrel material	SACM-645/38CRMOLA
Cylinder cooling fan	370W×6unit
Driving motor	15KW×1set,18.5KW×1set
Main inverter	15KW×1set;18.5KW×1set
Temperature control	6unit
Die head unit
Die head	ABA type
Temperature control	2 unit
Air ring	1pcs
Air blower	3KW
Center steady stick	1pcs
Traction Unit
Traction roller width	165×1050mm
Height adjust	1000mm
Traction speed	10-100m/min
Traction motor	2.2KW
Rewind Unit
Rewind motor	16N.M
Rewind speed	10-100m/min
