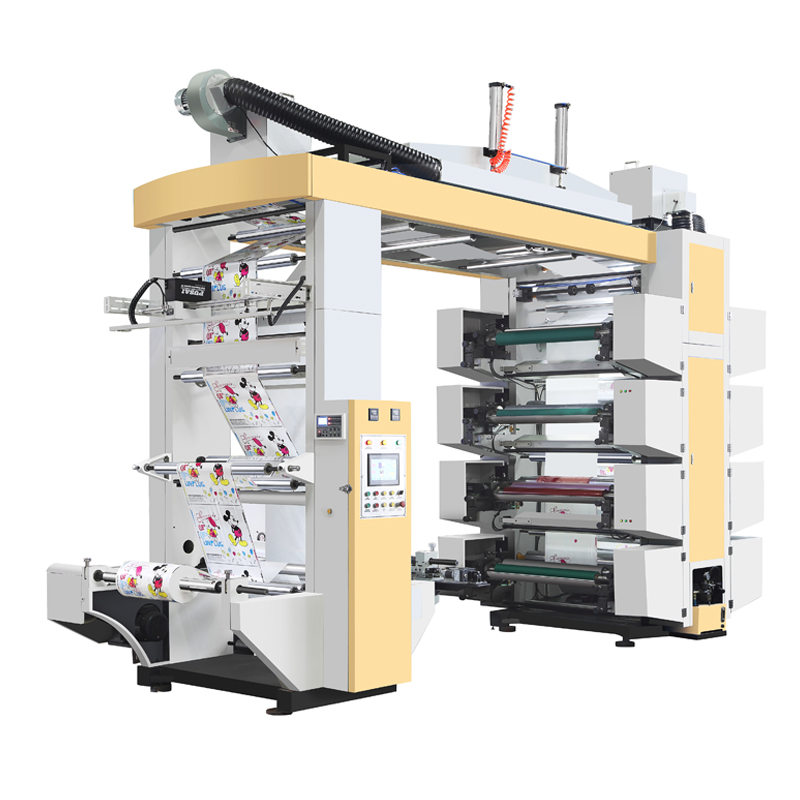

1.Feature
1)Ink Roller :With the Ceramic roller by 200LPI-1000LPI.high speed dot reproduction rate ,screen printing, structure three –dimensional sense of strong ,registering accurately
2)Ink :Adopt the automatic circle system ,running ink by single small motor
3)Timing :Adopt Japanese inverter controlled ,running by small fluctuations
4)Unwind EPC :adopt the high quality automatic EPC controller device
5)Unwind and rewind way : adopt the magnetism Auto tension controller.
6)Ink way :our company has special design for the doctor blade device with the ink pump can suck the ink automatically
7)Up and down plate :adopt the hydraulic pressure rising and down the printing plate automatically
8)Roller :adopt the special steel processing ,and through the special technique treatment , and plating thickness of 10 silk protective layer of hard chromium, beat the following in the 0.02mm
9)Traction Rollers :adopt Japanese production of small semi-enclosed bearing, static equilibrium and dynamic levels do cross-processing, hard oxidation treatment, resistance, beating a small
10)Drying device: ventilation with heat blowing three devices, which use a central heating temperature control system and the control each group
11)Body: thick wall (75mm), longer bridges, thick base, making the machine more stable.
2.Main Technical Specification
2.1 Main parameter
Model
YTB-8600/8800/81000
Max unwind width
600mm/800/1000mm
Max. Effective print width
560mm/760mm/960mm
Material
Non-woven fabric:15-120g; Paper:15~400g;
PVC:15~120μm; OPP:10~100μm; BOPP:10~100μm; PE:15~150μm; NY:15~120μm; PET:15~100μm
Printing color
8 colors
Max.Length of Printing
200-1100mm
Machinery mechanical speed
10-120m/min
Max.Speed of Material Printing
10-100m/min
Rubber plate thickness
2.38mm
Total power
40kw
machine weight
6700kg
machine dimension
5.2×2.0×3.3M
Power condition
380V,3PH,50HZ/220V,3phase,60HZ
2.2 Unwind Unit
Max.unwind roller width
1500mm
Max.effective length
600mm
Max.Unwind diameter
￠800mm
Type of Unwind
auto tension with magnetic powder
Unwinder Magnetism device
5kg
Unwind auto tension controller
2—20kg
Unwind EPC system
Electrical EPC system
Feeding shaft
Air shaft
Axis core diameter
76mm
2.3 Traction Unit
Constitution of Traction
Aluminum roller,Chrome plated Roller
Traction Zones
8Zones
2.4 Printing Unit
Constitution of Printing
Anilox roller, Rubber roller, Chrome plated roller, Version roller Resin version, Scraper
Girth of Pressing Roller
200-1100mm
Material of Plate
Resin or Rubber
Principle of Work
Gears Drive
Adjusting of Register
Manual
Overprint Precision
Horizontal:+-0.15mm,Vertical:+-0.2mm
Plated-glued roller adjusting
hydraulic type of plate-cylinder
Anilox Roller
Ceramic Anilox Roller:1 pcs/per color
Rubber rollers
1 pcs/per color
Scraper
Ordinary
2.5 Heating and Drying Unit
Type of Heating and drying
blowing first then heating
Heating Zones
12 zones
Power of Heating
12kw
Assistance of Drying Length
2m
Blowers
8 Fans
Power of Blowers
1.5kw×2pcs; 0.2kw×6pcs
2.6 Electrical Parts
Main motor
3.7kw
Ink-Transfer Motor
0.2kw
Inverter
3.7kw
Tension test
2--30kg
2.7 Wind Unit
Max. Rewind roller width
1500mm
Max. Rewind diameter
￠600mm
Type of Wind
Auto tension with magnetic powder
Rewinder Magnetism Powder
5-10kg
Collect Reducer Motor
1.5kw
Auto tension controller
2—20kg
The receiving shaft
Air shaft
Axis core diameter
￠76mm
