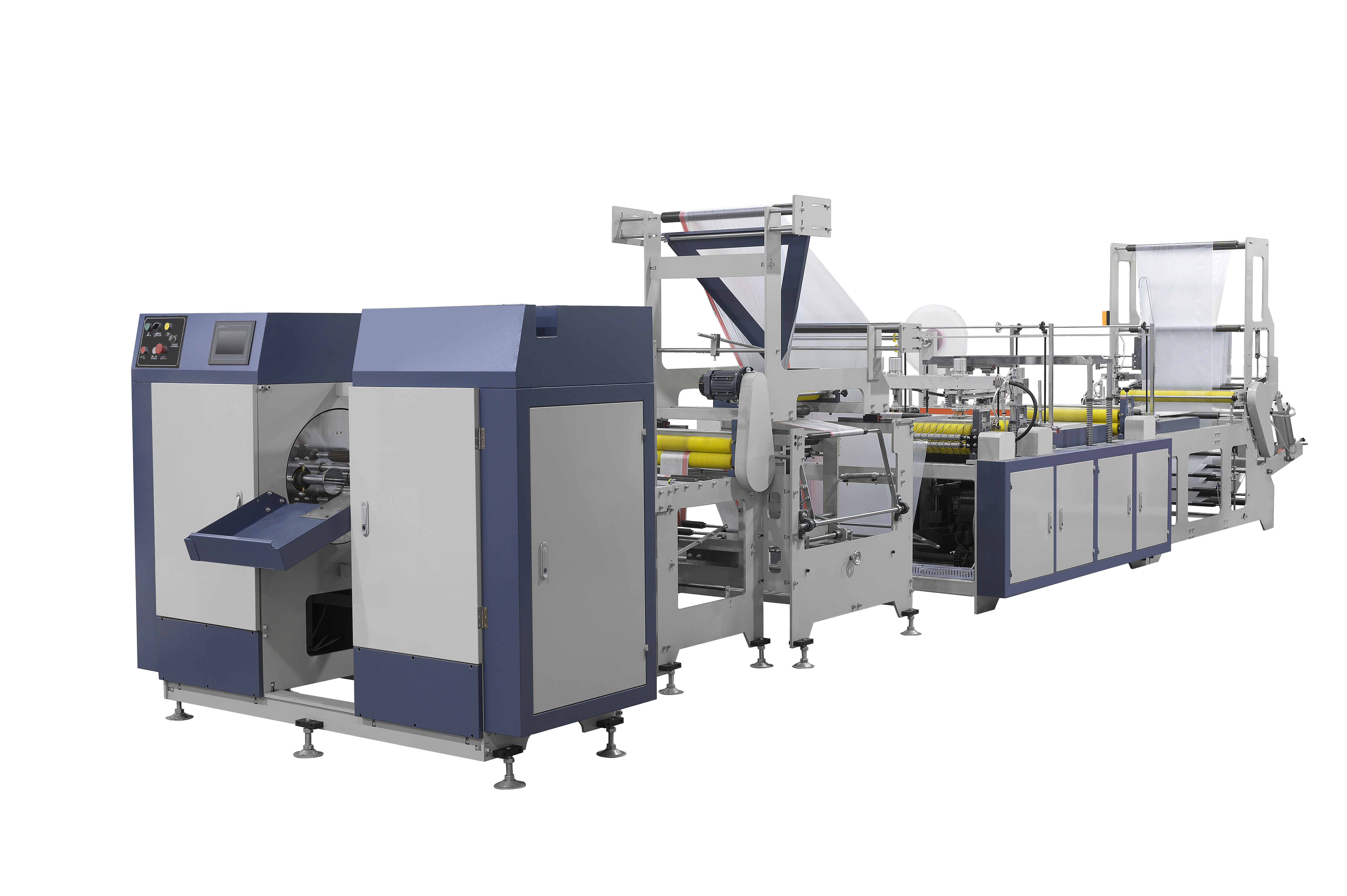

HSLJ-800/1000D Automatic plastic string roll garbage bag making machine
| HSLJ-800/1000D Automatic plastic string roll garbage bag making machine |
| Categories: Bag Making Machine |
| string rope plastic bag garbage bag; roll garbage bag with string, no stretch, coreless bag |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1.Feature
1) This machine is manufactured by our company using advanced technology at home and abroad (the first case in China).
2)Using PLC computer control, 3 servo motor structure model.
3) With photoelectric automatic tracking, white bag, color bag conversion function, microcomputer fixed length, automatic counting, number alarm, automatic temperature.
4) With automatic slitting, punching holes, semi-circular holes, belting, belt shifting, side sealing, bottom sealing, and point breaking.
5) Adopting a non-stretch sealing mechanism, the sealing and point-breaking are synchronized, and the back cover is firm and beautiful.

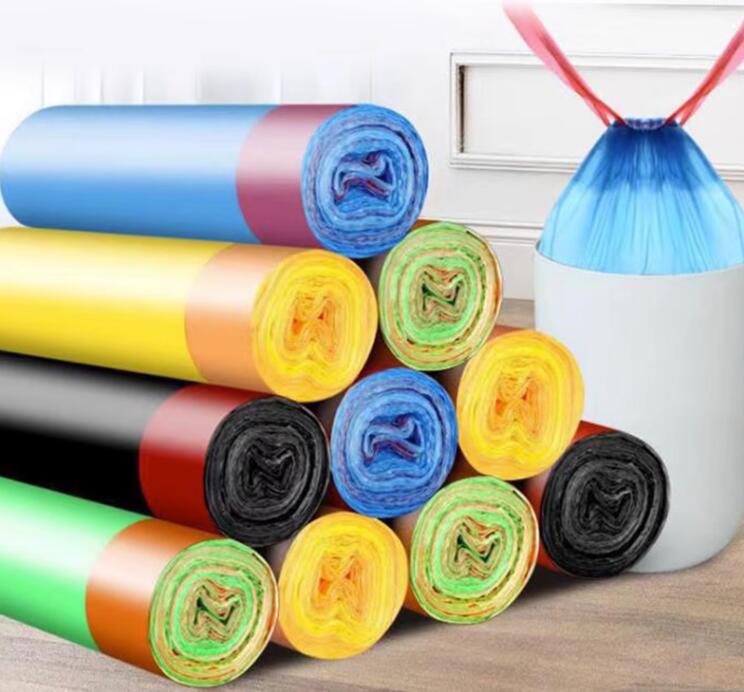

6)The machine can process continuous-rolled garbage bags, continuous-rolled flat pockets and flat pockets.
7) The whole machine adopts a one-stop production line with a high degree of automation. It is an ideal equipment for making wearing garbage bags and an advanced equipment that replaces imported similar products.
2.Main technical specification
|
Model |
HSLJ-800D |
HSLJ-1000D |
|
Suitable materials |
HDPE,LLDPE |
HDPE,LLDPE |
|
Bag sealing length |
300-800mm |
300-1000mm |
|
Bag cutting width |
700mm |
900mm |
|
Max. Unwind diameter |
700mm |
700mm |
|
Max. Rewind width |
350mm |
350mm |
|
Machine speed |
30-80M/min. |
30-80M/min. |
|
Bag cutting speed |
50-140pcs/min. |
50-140pcs/min. |
|
Max. Rewind diameter |
150mm |
150mm |
|
Main motor |
1.5KW |
1.5KW |
|
Total power |
15KW |
17KW |
|
Voltage |
380V, 50HZ, 3 phase |
|
|
Single layer film thickness |
0.01-0.04mm |
|
|
Weight |
2000KG |
2500KG |
|
Overall size |
9.5x2x1.8M |
9.7x2.2x1.8M |
-
