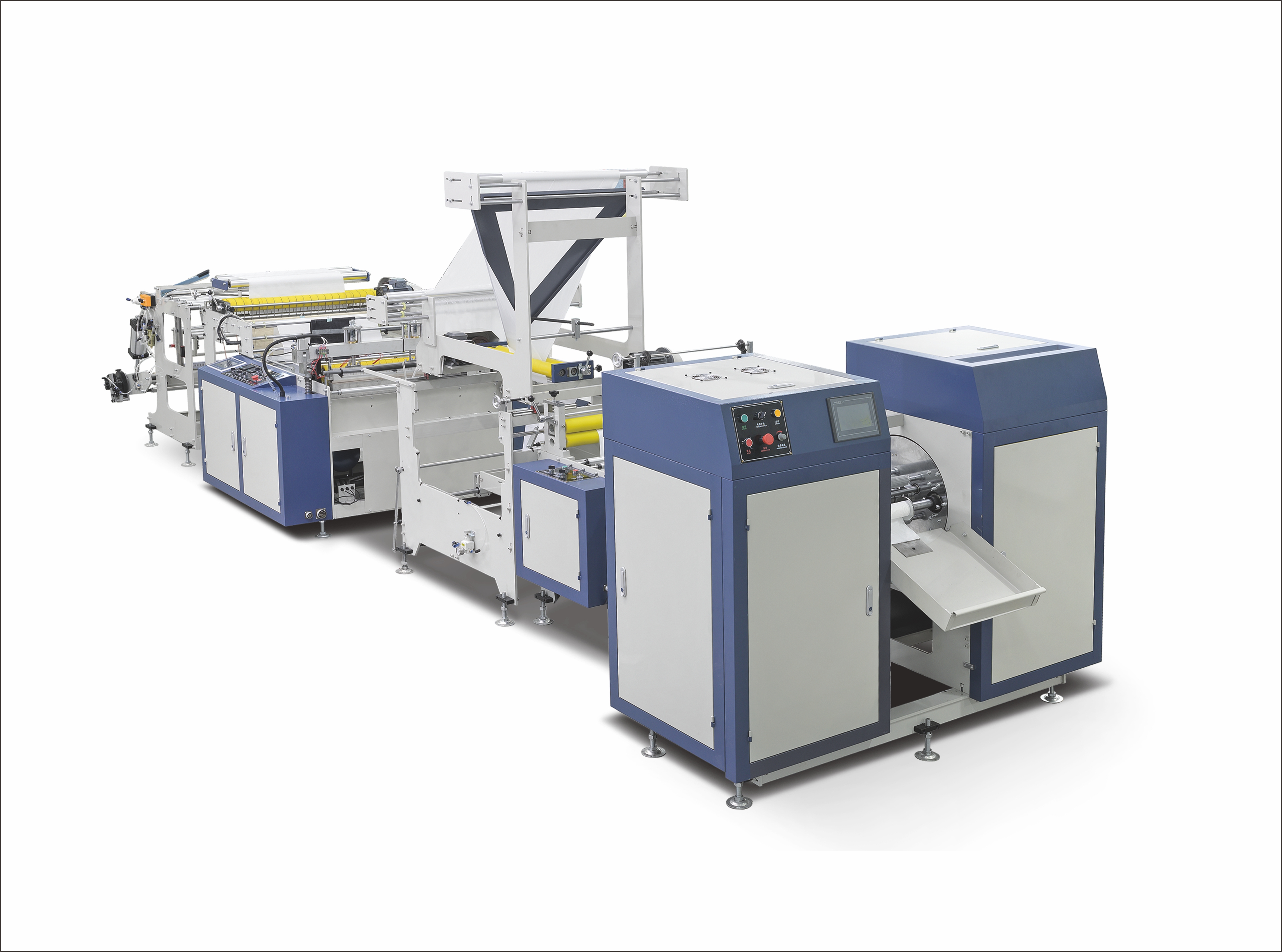

HSLJ-1000/1200AR Automatic Bottom Sealing and Folding Garbage Bag Machine
| HSLJ-1000/1200AR Automatic Bottom Sealing and Folding Garbage Bag Machine |
| Categories: Bag Making Machine |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1.Feature
1)This model of bag machine is suitable for the production roll-to-roll garbage bags.
2)After folding the back cover, automatic core-less exchange rolls,automatically cut off according to the set number of rolls, without any special operation.
3)improve bag making factory efficiency and reduce labor demand of choice for equipment.
2.Main technical specification
|
型號(hào)Model |
HSLJ-1000AR |
HSLJ-1200AR |
|
Suitable materials |
HDPE,LLDPE |
HDPE,LLDPE |
|
Max. Unwind diameter |
650mm |
650mm |
|
Max. Bag sealing width |
150-800mm |
150-1000mm |
|
Bag cutting length |
300-1500mm |
300-1500mm |
|
Max. Rewind roll width |
100-350mm |
100-350mm |
|
Max. Rewind diameter |
150mm |
150mm |
|
Machine linear speed |
10-70M/min. |
10-70M/min. |
|
Bag cutting speed |
20-120pcs/min. |
20-120pcs/min. |
|
Main motor |
1.5KW |
1.5KW |
|
Total power |
15KW |
18.5KW |
|
Voltage |
380V, 50HZ, 3 phase |
380V, 50HZ, 3 phase |
|
Film thickness |
0.01-0.15mm |
0.01-0.15mm |
|
Weight |
2400KG |
2800KG |
|
Overall size |
7000x2000x1900mm |
7000x2300x1900mm |
-
