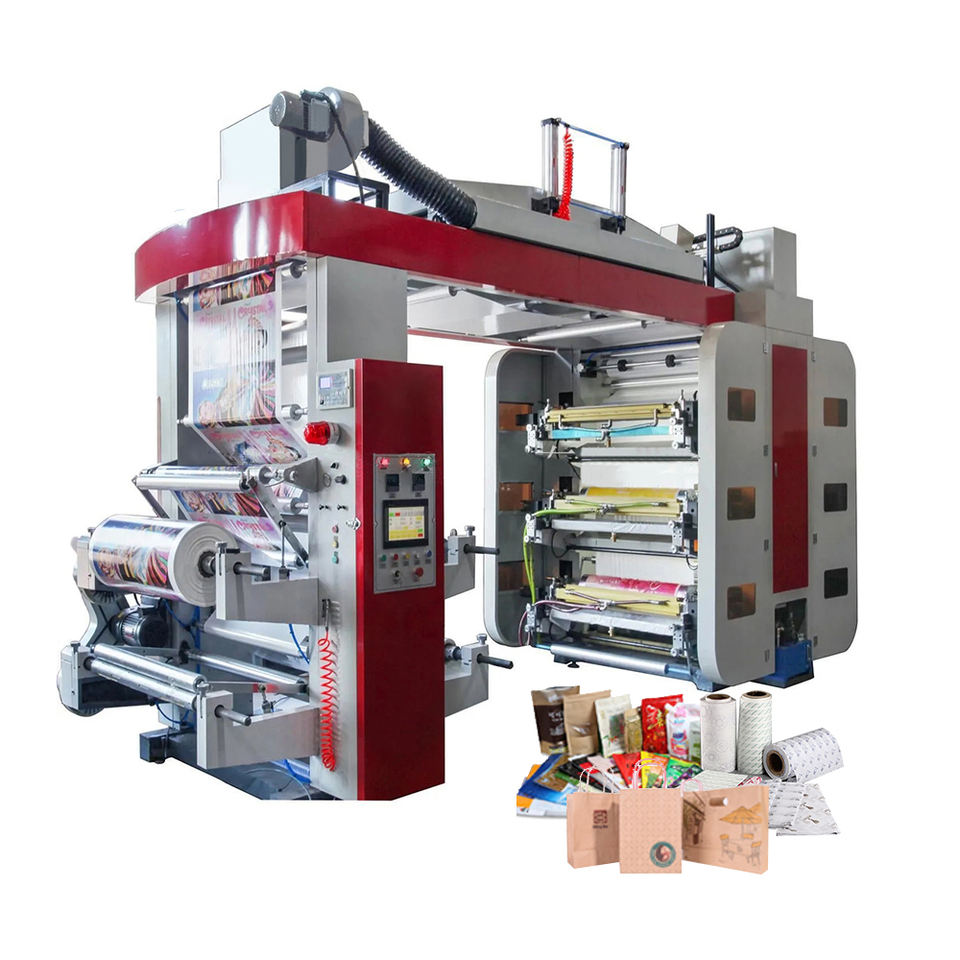

Feature:
1.1 Ink Roller :With the Ceramic roller by 100LPI-1000LPI, high speed dot reproduction rate,
screen printing, structure three–dimensional sense of strong ,registering accurately
1.2 Ink :Adopt the automatic circle system ,running ink by single small motor
1.3 Timing :Adopt Japanese inverter controlled ,running by small fluctuations
1.4 Unwind EPC :adopt the high quality automatic EPC controller device
1.5 Unwind and rewind way : adopt the magnetism Auto tension controller.
1.6 Ink way :our company has special design for the doctor blade device with the ink pump can suck the ink automatically
1.7 Up and down plate :adopt the hydraulic pressure rising and down the printing plate automatically
1.8 Roller :adopt the special steel processing ,and through the special technique treatment , and plating thickness of 10 silk
protective layer of hard chromium, beat the following in the 0.02mm
1.9 Traction Rollers :adopt Japanese production of small semi-enclosed bearing, static equilibrium and dynamic levels do cross-processing, hard oxidation treatment, resistance, beating a small
1.10 Drying device: ventilation with heat blowing three devices, which use a central heating temperature control system and
the control each group
1.11 Body: thick wall (75mm), longer bridges, thick base, making the machine more stable.
1.12 The control system: machine adopts PLC device: 1) start,2) stop,3) run,4) automatically transported down the ink, with
PLC control, automation and better, more humane facilities.
2.Main Specification
|
2.1 Main Parameter |
|
|
Model |
YTB-6600/6800/61000 |
|
Max Width of Material |
600mm/800mm/1000mm |
|
Max.Width of Printing |
560mm/760mm/960mm |
|
Material |
Non-woven fabric:15-120g,Paper:15~400g/m2 Aluminum foil:30~150μm,Woven Fabric Material:15-500g/m2,PVC:15~120μm,OPP:10~100μm, BOPP:10~100μm,PE:15~150μm,NY:15~120μm, PET:15~100μm,CPP:15~100μm |
|
Printing color |
6 colors |
|
Max.Length of Printing |
200-1100mm |
|
Machinery mechanical speed |
10-90m/min |
|
Max.Speed of Material Printing |
10-70m/min |
|
Thickness of Plate |
2.38mm |
|
machine weight |
600-7000Kg |
|
machine dimension |
5.2m×2.2m×3.3m/5.2x2.4x3.3m/5.2x2.6x3.3m |
|
Power condition |
Voltage:380V,3PH,50HZ |
|
2.2 Unwind Unit |
|
|
Max.Length of Roller |
1000mm |
|
Max.Width of Printing |
560mm/760mm/960mm |
|
Max.Dia. of Unwind |
￠1000mm |
|
Type of Unwind |
auto tension with magnetic powder |
|
Unwinder Magnetism device |
5kg |
|
Auto Tension Controller Unwinder |
2—20kg |
|
Unwinder EPC |
Electrical Edge Correction Device |
|
Feeding shaft |
Air shaft |
|
Axis core diameter￠ |
76mm |
|
2.3 Traction Unit |
|
|
Constitution of Traction |
Aluminum roller, Chrome plated Roller |
|
Traction Zones |
6 Zones |
|
2.4 Printing Unit |
|
|
Constitution of Printing |
Anilox roller, Rubber roller, Chrome plated roller, Version roller Resin version, Scraper |
|
Girth of Pressing Roller |
200-1100mm |
|
Material of Plate |
Resin or Rubber |
|
Principle of Work |
Gears Drive |
|
Adjusting of Register |
Manual |
|
Overprint Precision(mm) |
Horizontal:+-0.15mm,Vertical:+-0.2mm |
|
Plated-glued roller adjusting |
hydraulic type of plate-cylinder |
|
Anilox Roller |
Ceramic Anilox Roller:1 pcs/per color |
|
Rubber rollers |
1 pcs/per color |
|
Scraper |
Ordinary |
|
2.5 Heating and Drying Unit |
|
|
Type of Heating and drying |
blowing first then heating |
|
Heating Zones |
12zones |
|
Power of Heating |
15 kw |
|
Assistance of Drying Length |
2m |
|
Blowers |
10Fans |
|
Power of Blowers |
1.5kw×2pcs 0.2kw×8pcs |
|
2.6 Electrical Parts |
|
|
Main motor |
7.5kw |
|
Ink-Transfer Motor |
0.2kw |
|
The inverter |
7.5kw (An Inverter Equips With the Main Motor) |
|
Tension test |
2--30kg |
|
2.7 Wind Unit |
|
|
Max Width of Material |
1000mm |
|
Max.Dia of Wind |
￠1000mm |
|
Type of Wind |
Auto tension with magnetic powder |
|
Rewinder Magnetism Powder |
5kg |
|
Collect Reducer Motor |
2.2KW |
|
Auto tension controller |
2—20kg |
|
The receiving shaft |
Air shaft |
|
Axis core diameter |
￠76mm |
