1. Application
The machine is applicable for slitting of BOPP, PET, PE, PP, PVC, aluminum foil, paper and isolating
material.
2.Feature
1) This machine adopts center-winding and surface-contacting and winding.
2) It is equipped with photoelectric automatic deviation-rectifying device, invariable tension magnetic powder arrester and clutch.
3)It is equipped with automatic meter-calculating measures and automatic stopping device.
4)Frequency variable and speed adjustable for mainframe.
5)Retractable roll-axis use of inflatable.
3.Main Technical Specification
Model
BFQ-700
BFQ-1100
BFQ-1300
Max. Unwind width
700mm
1100mm
1300mm
Min. Slitting width
8mm
8mm
8mm
Machine speed
180m/min
180m/min
180m/min
Slitting speed
160m/min
160m/min
160m/min
Unwind diameter
800mm
800mm
800mm
Rewind diameter
2×450mm
2×450mm
2×450mm
Rewind clutch
50N.M
50N.M
50N.M
Main motor
3.kw
3.5kw
4.5kw
Edge motor
0.55kw
0.55kw
0.55kw
Total power
4.5kw
5kw
5.5kw
Gross weight
2200kg
2500kg
2800kg
Dimension
2×1.3×1.6m
2×1.6×1.6m
2×1.8×1.8m

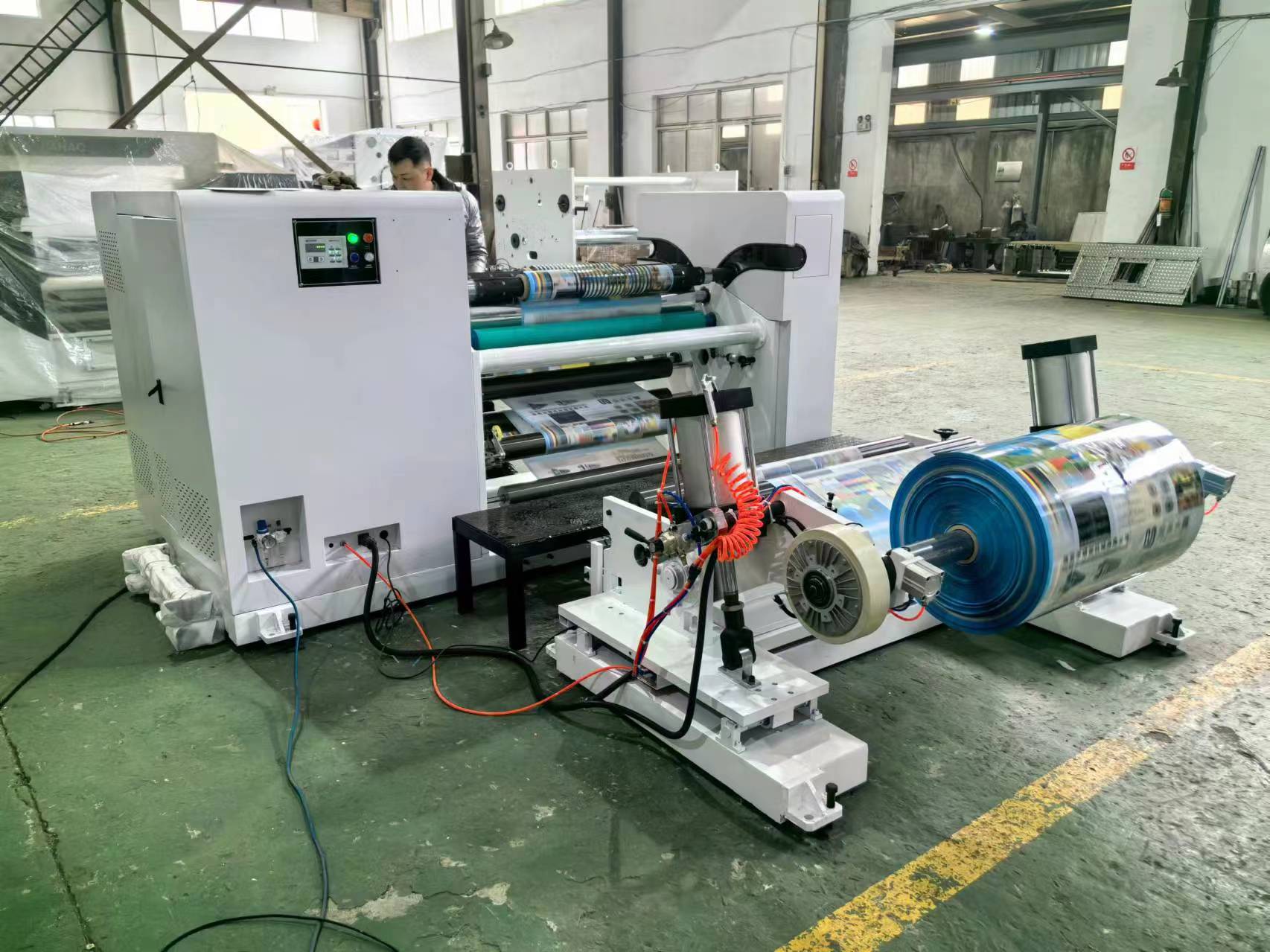

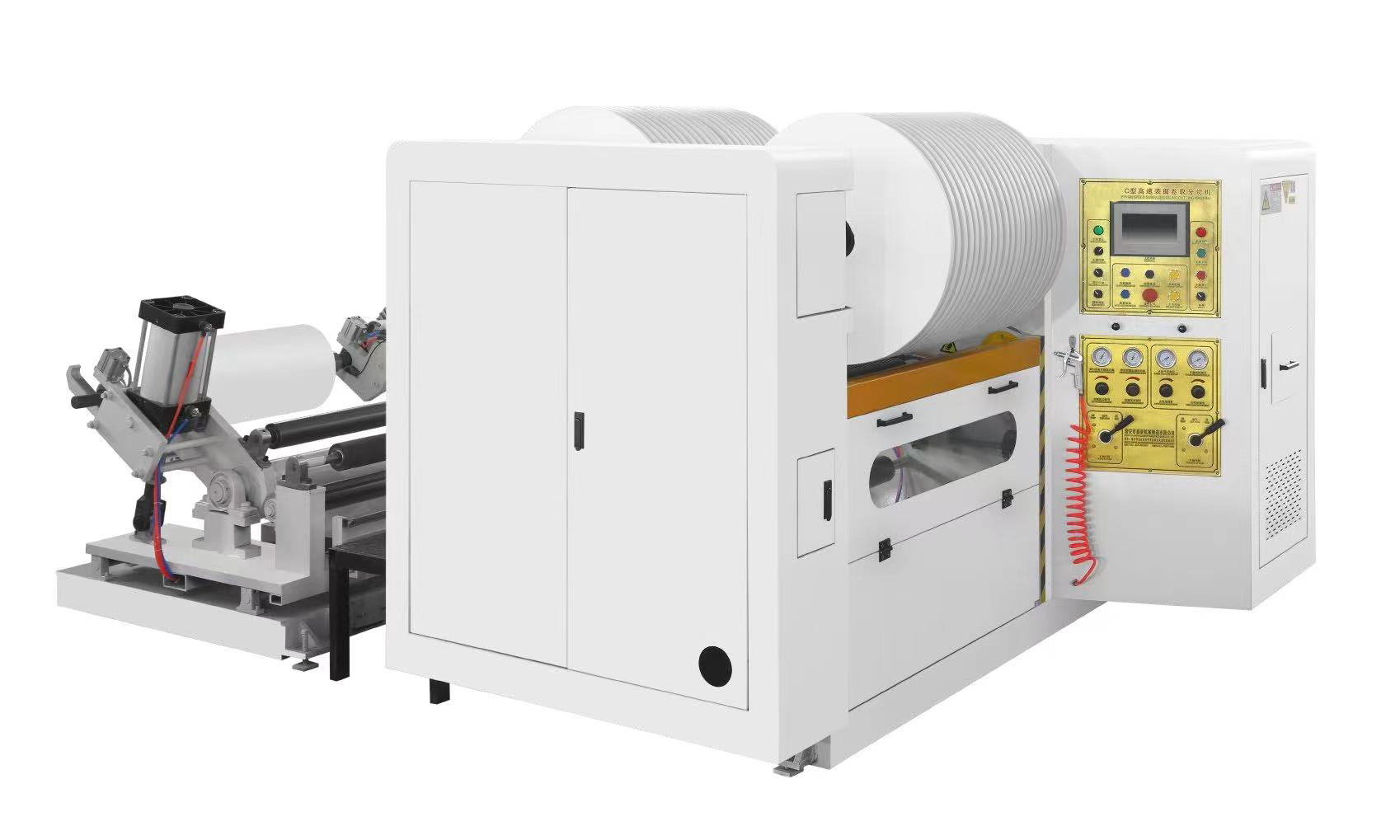

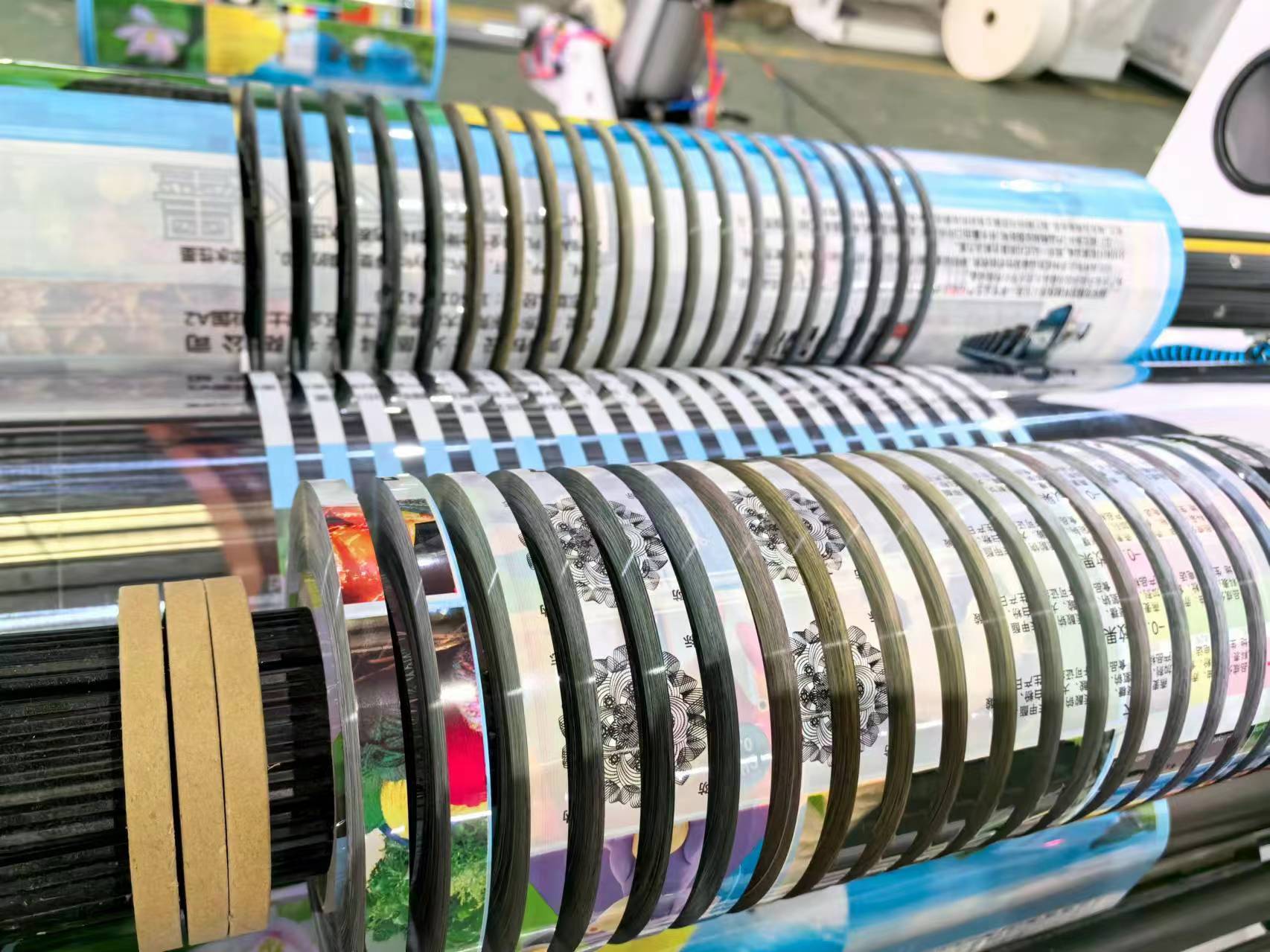

4. product picture show
