[1].Feature:

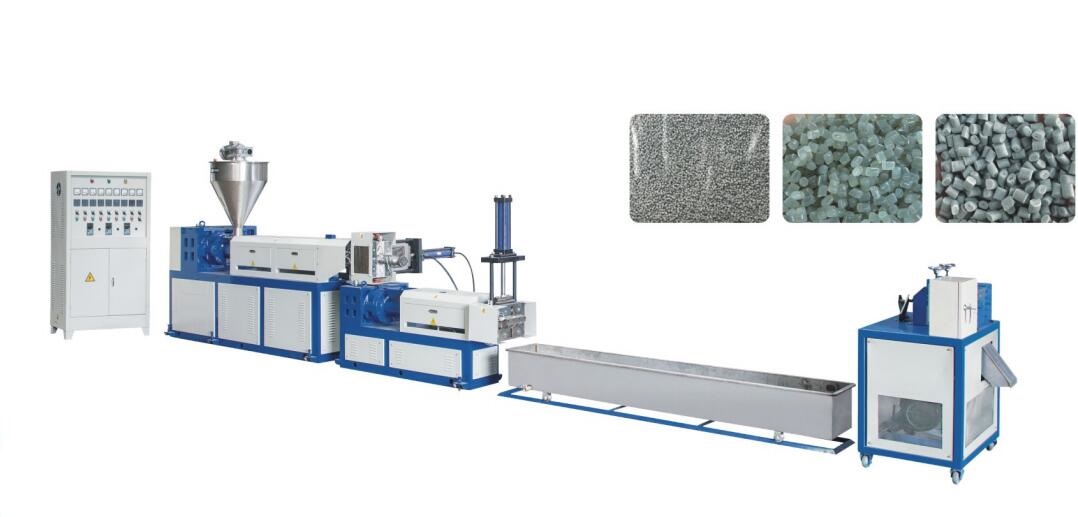

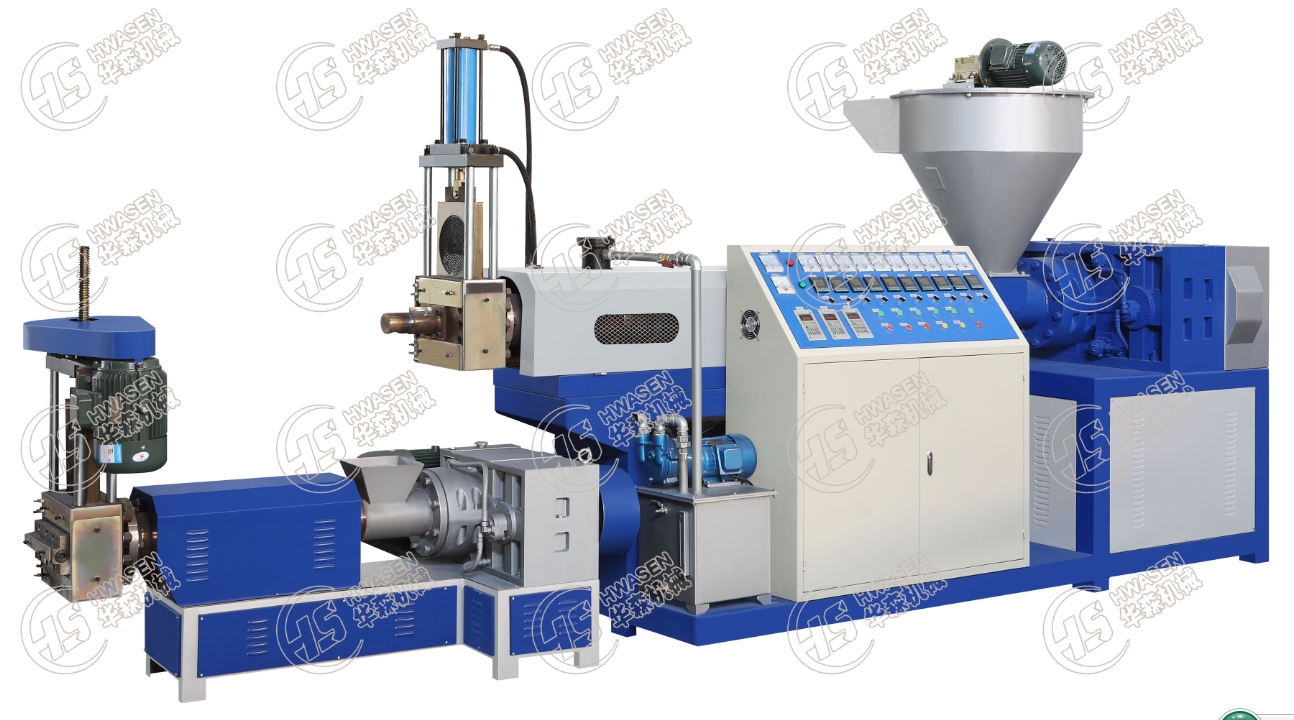

This machine suitable for PE, PP waste film recycle, and then granulator int granules;
Machine with safety shield, more safety operate and temperature more stable;
Finished granule can mix with new material use, it can save factory cost.
[2].Main technical specification:
|
Model |
SJ140/120 |
SJ160/140 |
|
Main screw diameter |
140mm |
160mm |
|
Main screw L/D ratio |
22:1 |
22:1 |
|
Main screw/barrel material |
38CrMOLA,800-900HV |
38CrMOLA,800-900HV |
|
Main screw heating ring |
Ceramic heating ring |
Ceramic heating ring |
|
Feeding way |
Force feeder |
Force feeder |
|
Sub-screw diameter |
120mm |
140mm |
|
Sub-screw L/D ratio |
10:1 |
10:1 |
|
Screw speed |
10-100r/min |
10-100r/min |
|
Sub-screw/barrel material |
38CrMOLA,800-900HV |
38CrMOLA,800-900HV |
|
Main gear box(reducer) |
250# hard teeth gear |
250# hard teeth gear box |
|
Sub-gear box(reducer) |
173# hard teeth gear |
180# hard teeth gear box |
|
Main motor |
37KW |
55KW |
|
Sub-motor |
15KW |
18.5KW |
|
Cutting motor power |
2.2KW |
2.2KW |
|
Temperature control box |
10zone (main extruder:7unit; sub extruder 3unit) |
|
|
Output capacity |
130-150KG/H |
210-260KG/H |
|
Weight |
3800kg |
5000kg |
|
Dimension |
5×2.4×2M |
6×2.5×2.2m |
