      Welcome to visit RUIAN HWASEN MACHINERY CO., LTD
      LANGUAGE: 中文版 ∷  英文版
      Location:Home > Products > Stretch Film/Bubble Film Machine Series

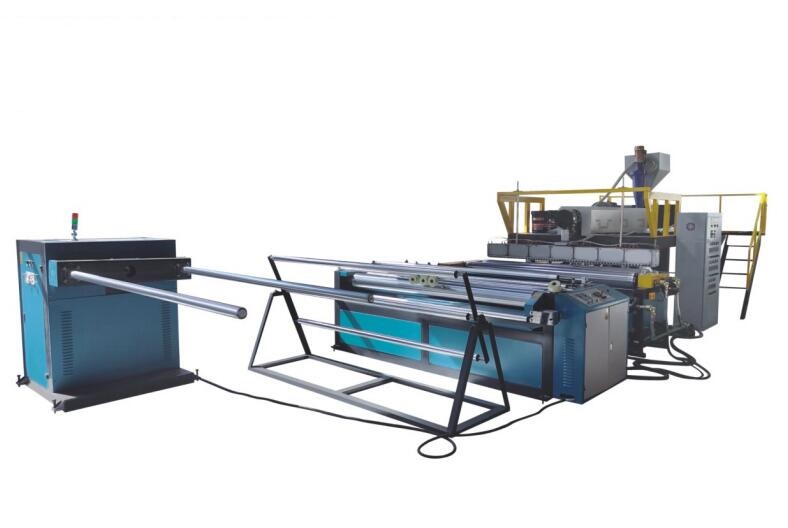

      HSQP-1200-2500 Single screw Double layers PE air bubble film machine

      Characteristic

      This machine adopts once-through shaping technique, thus has high efficiency and excellent product quality.

      This machine set has such features as scientific and reasonable structure design, smooth and reliable running and convenient operation and maintenance.

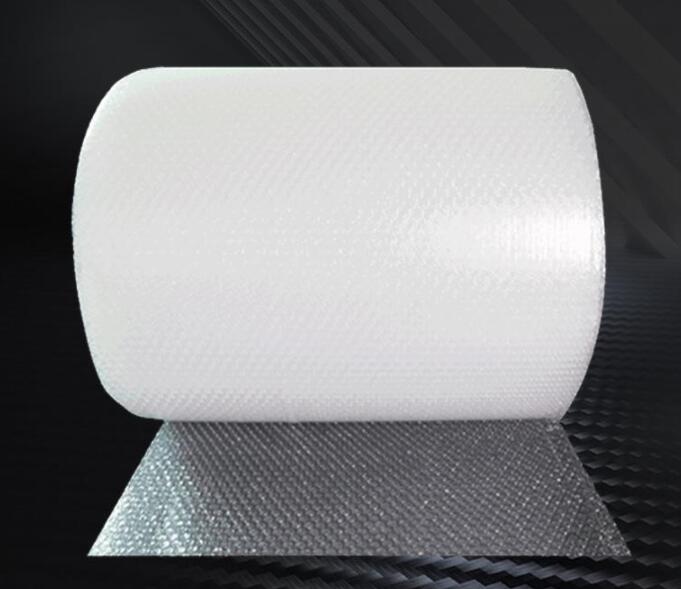

      Polyethylene air-cushion film (also called polyethylene bubble film), which is divided into two kind: ordinary polyethylene air-cushion film and composite polyethylene air-cushion film, is a kind of packing material which has been widely used at present.

      It not only has good cushioning effect, shock resistance and heat-sealing performance, but also has such advantages as good corrosion resistance and transparency, etc.

      Application

      The bubble film is made of LDPE material.It can also make into laminated films with aluminized film, foamed PE sheet, and paper are the applications of sun shading, heat insulation, and packaging.

      Main Technical Specification

      Model

      HSQP-1500

      HSQP-2000

      Main material

      LDPE

      LDPE

      Screw diameter

      75mM

      90mm

      Mold width

      1700mm

      2100mm

      L/D ratio

      28:1

      28:1

      Main motor

      22KW

      30kw

      Heating power

      22KW

      32kw

      Finished film width

      1500mm

      2000mm

      Rewind diameter

      1000mm

      1000mm

      Main bubble specification

      10×4mm/6×3mm/20×10mm

      Output capacity

      60-80kg/h

      80-120kg/h

      Power source

      380V,3phase

      Total installed capacity

      60KW

      80KW

      Overall dimension

      6×3×2.5m

      7.5×3.3×2.5m

      Gross weight

      4500KG

      6000KG
