1.Feature:
1Has functions as automatic photoelectricity tracking, microcomputer length setting, high limit stopping.
2)Automatic counting and alarm when reaching the setting value, high compensation accuracy.
3) Bags of production are neat, little error.
4Ideal equipment for producing blank bags, color bags, flat bags, vest bags and various soft package bags.
2.Main technical specification
|
Model |
HSLJ-600 |
HSLJ-800 |
HSLJ-1000 |
|
Bag make width |
50-560mm |
50-760mm |
50-960mm |
|
Bag make length |
100-1200mm |
100-1200mm |
100-1200mm |
|
Film thickness |
0.02-0.15mm |
0.02-0.15mm |
0.02-0.15mm |
|
Bag make speed |
10-120pcs/min×2 |
10-120pcs/min×2 |
10-120pcs/min×2 |
|
Error |
±0.5mm |
±0.5mm |
±0.5m |
|
Main motor |
1.1kw |
1.5kw |
2.2kw |
|
Weight |
700kg |
900kg |
1100kg |
|
Dimension |
3.2×1.1×1.6m |
3.2×1.3×1.6m |
3.2×1.5×1.6m |

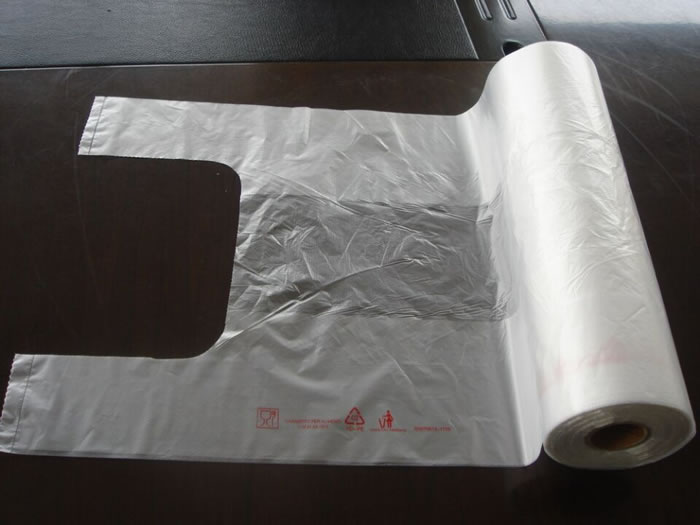

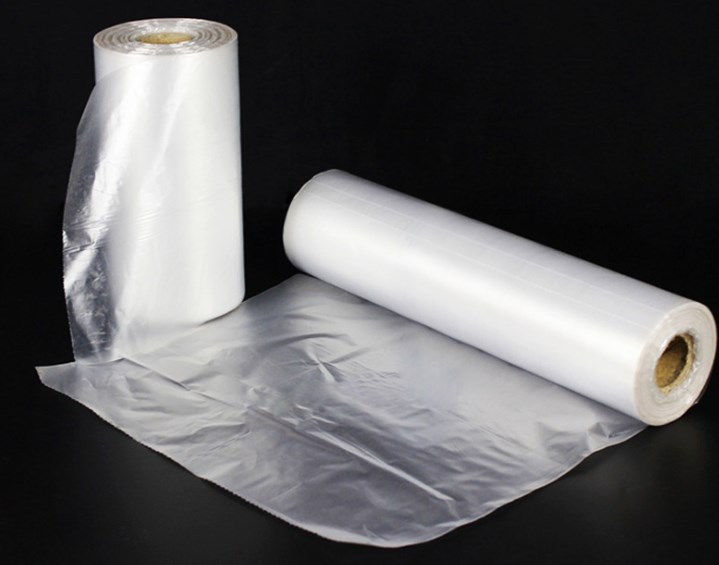

Bag type product :
