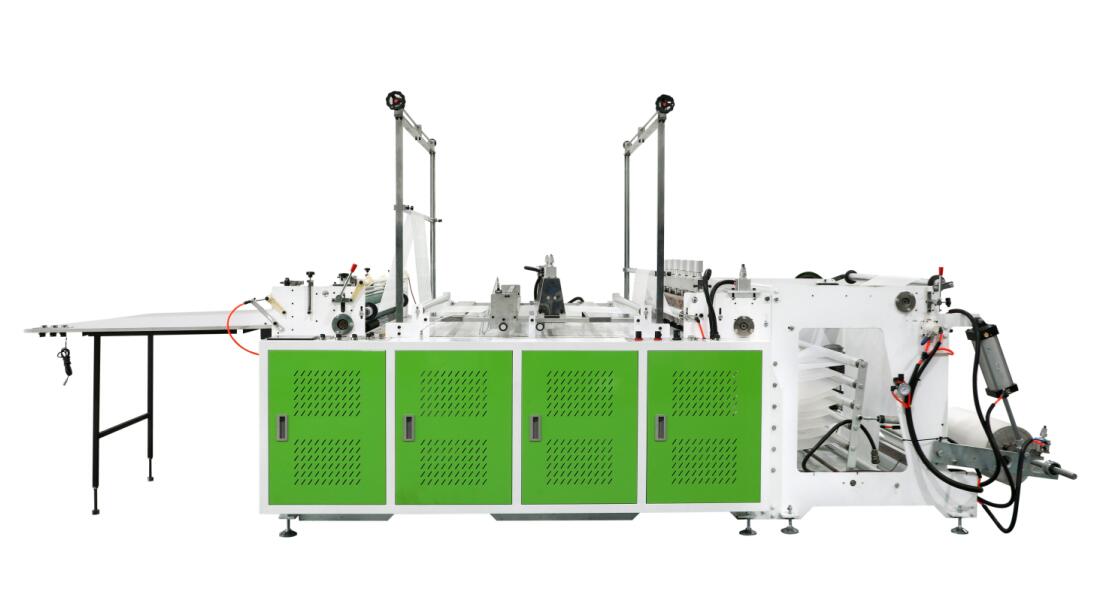

DLQ-600/800/1000/1200C Heavy Duty 3-4 Servo Thicker Bag Making Machine
| DLQ-600/800/1000/1200C Heavy Duty 3-4 Servo Thicker Bag Making Machine |
| Categories: Bag Making Machine |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
[1].Feature:
1) This machine fit for PE,PP blank or color bag cutting, such as tissue bag, towel bag, disaper bag out package bag,different kind of thicker bag.
2) Can add reinforce sheet function, handle hole puncher and weave line sealing device.
3) Automatic counting and alarming. With accurate photocell eye tracking ,stops automatically in case of wrong color marks.
3) Machine install heat welding blade, automatic take off film structure, when machine stop work, heat welding blade automatic take off from the film, avoid film melt off.
4) Photo-sensor can tracking color bag mark, keep same step with printing bag, and with computer setup length,bag length can be setup automatic by customer, easy operate.
5)This machine with pneumatic auto feeding system, double process sealing, auto counting, auto punching, stacking and alarming function.
[2] Main technical specification
|
Model |
DLQ-600C |
DLQ-1000C |
|
Max. Bag width |
100-550mm |
100-950mm |
|
Max. Bag length |
200-1200mm |
200-1200mm |
|
Film thickness |
0.01-0.4mm (standard) |
0.01-0.4mm (standard) |
|
Work line |
1 line |
1 Lline |
|
Cutting precision |
±0.5mm |
±0.5mm |
|
Bag making speed |
10-100pcs/min(depend on bag length and thickness) |
10-100pcs/min(depend on bag length and thickness) |
|
Power supply |
220V,50HZ,single phase |
220V,50HZ,single phase |
|
Main Motor |
1.5KW |
2.2KW |
|
Heating Power |
5KW |
9KW |
|
Weight of Machine |
1200KGS |
1400KG |
|
Overall Dimensions |
4.2×1.4×1.6M |
4.2×1.8×1.6M |

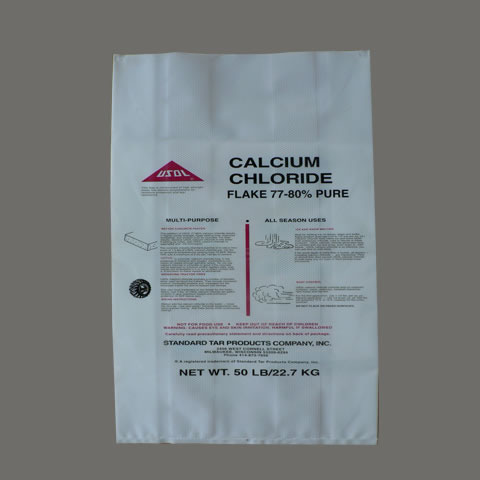

thicker bag product show
-
